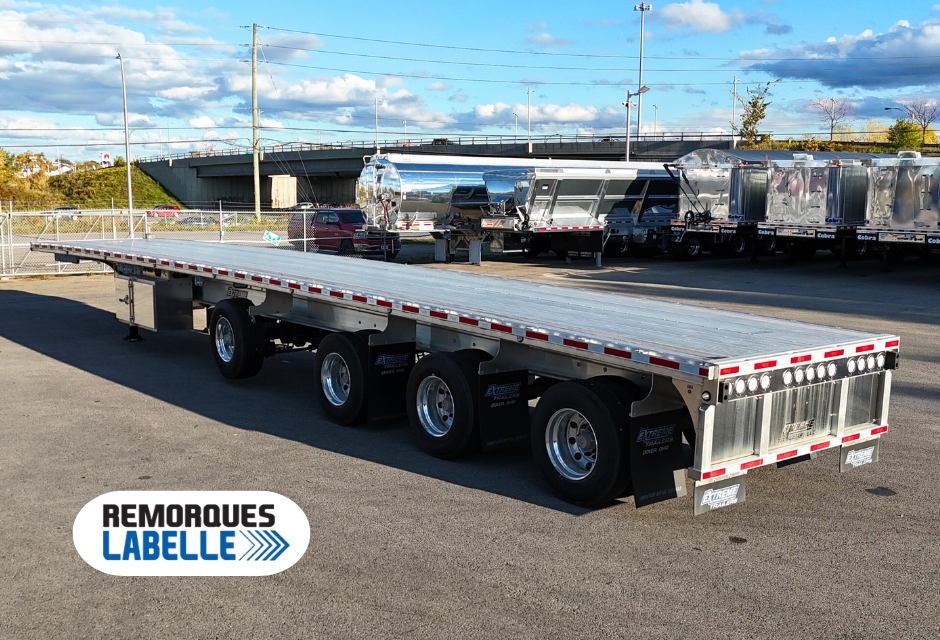

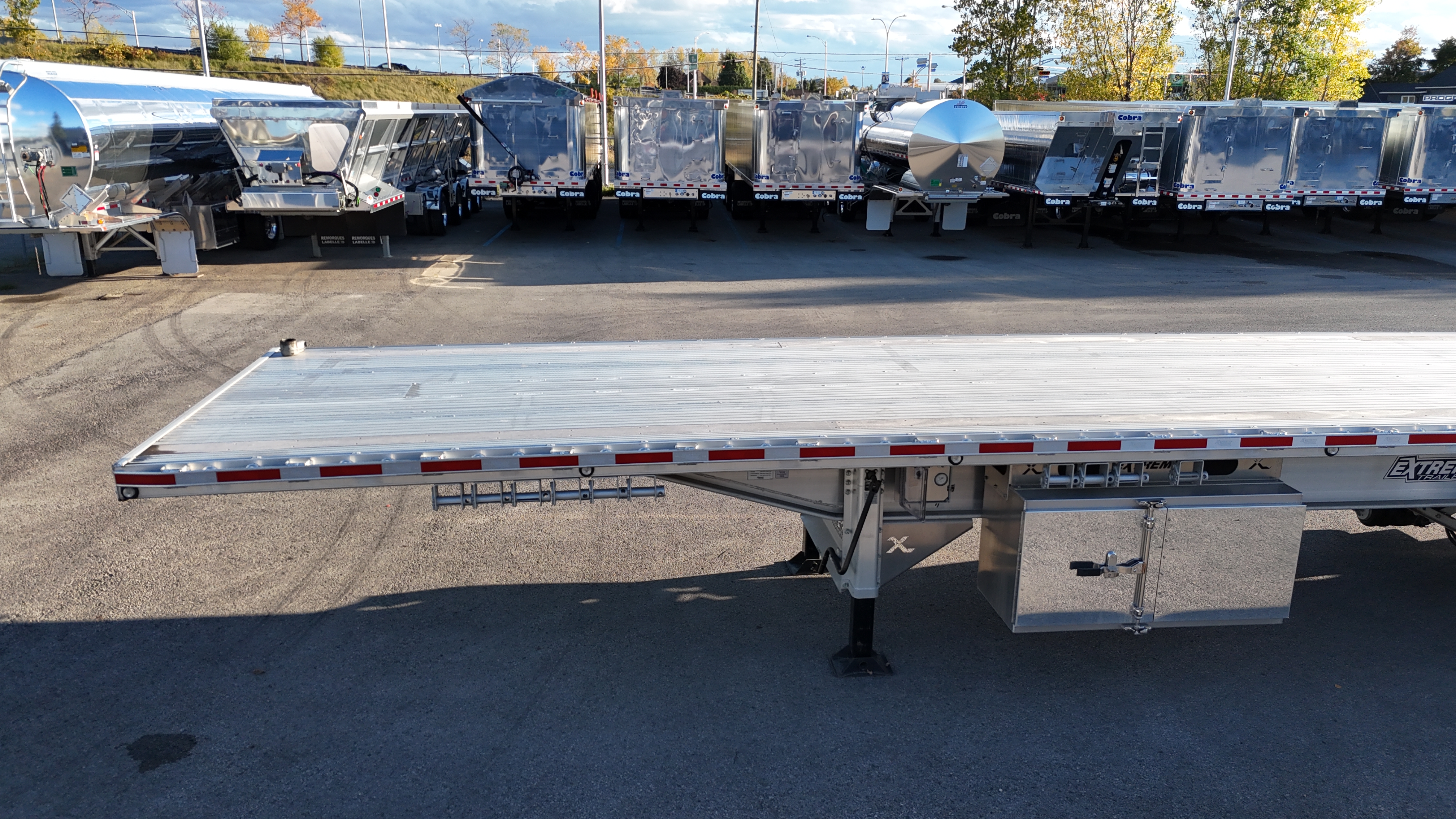

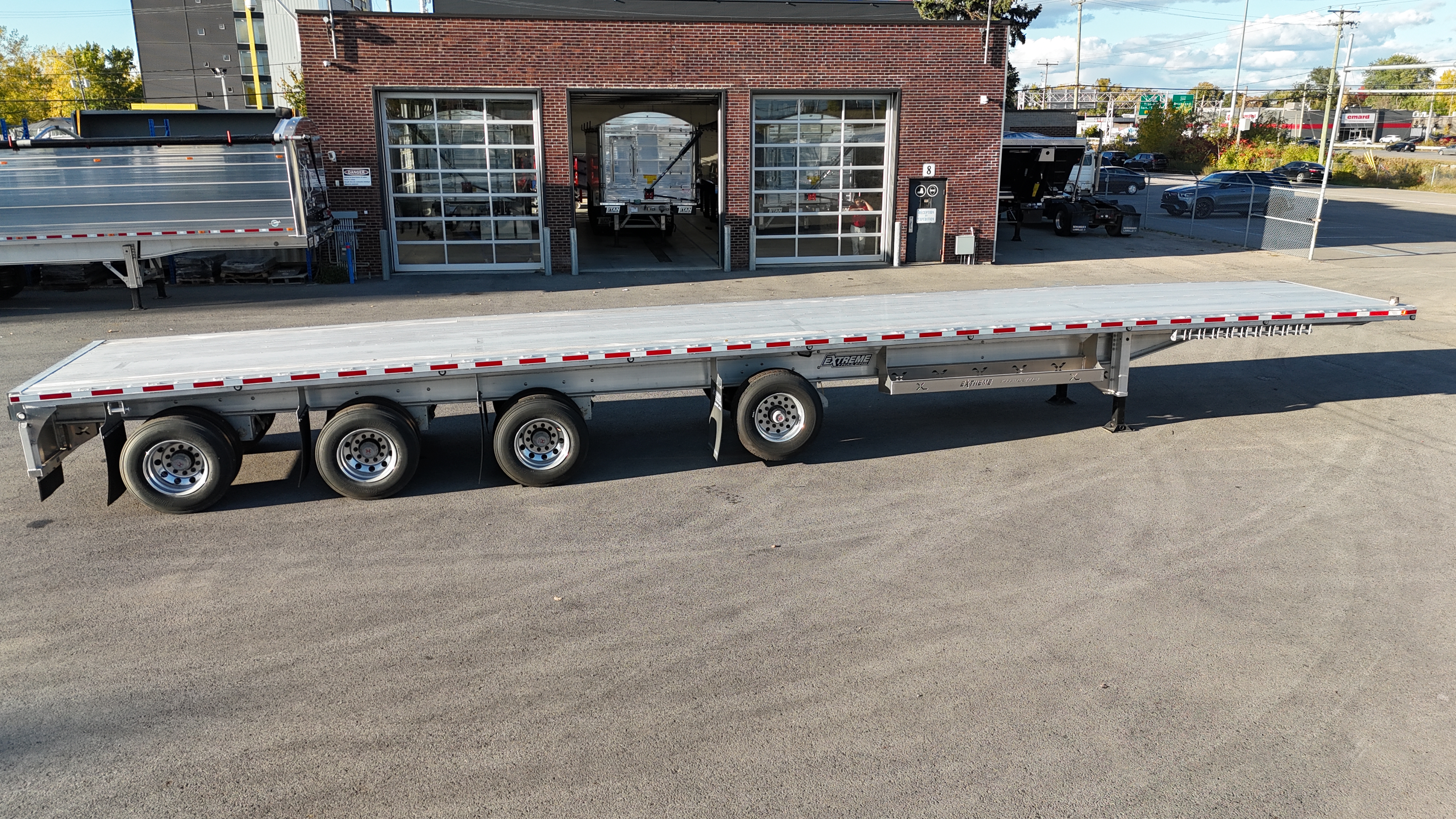

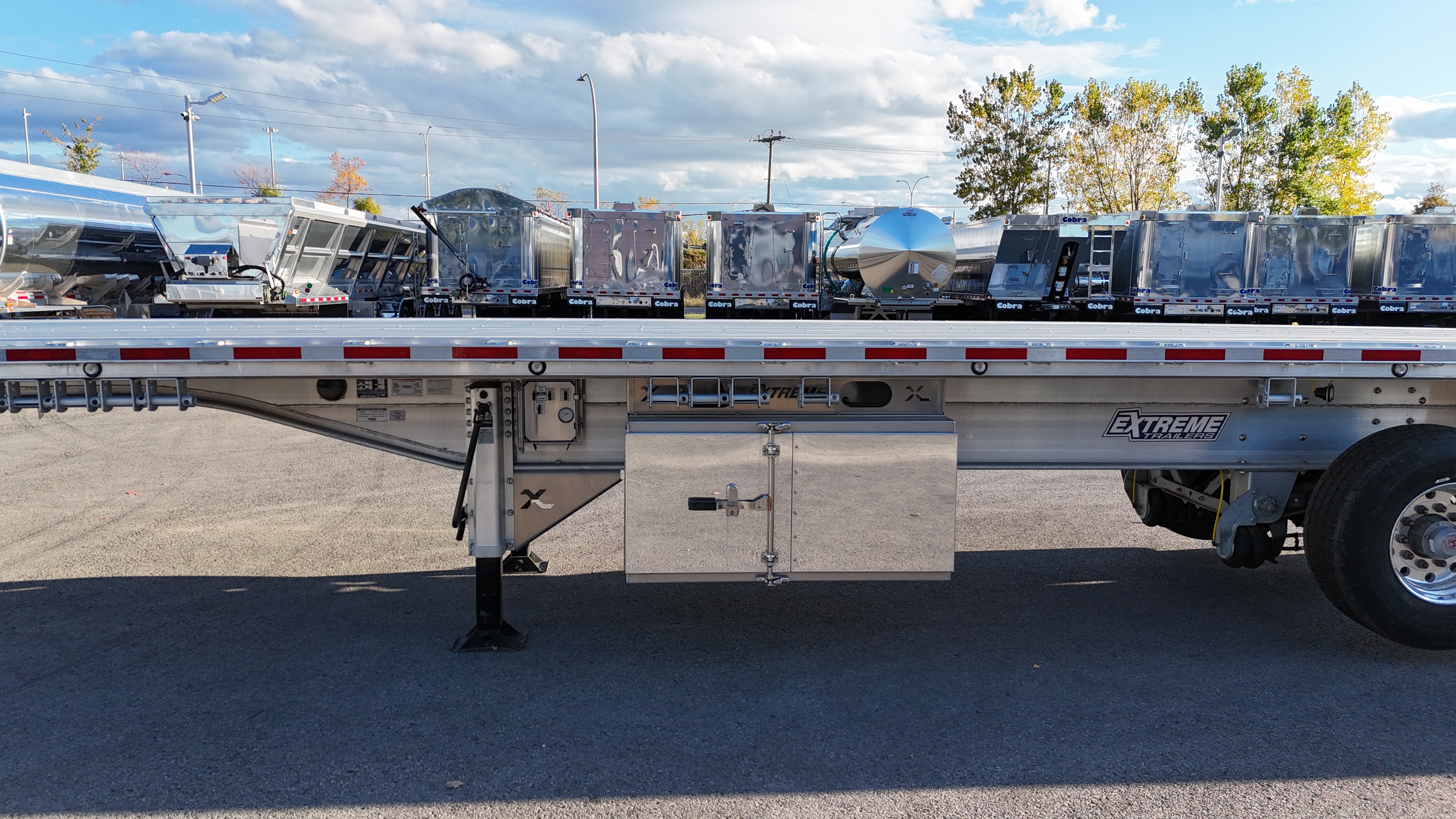

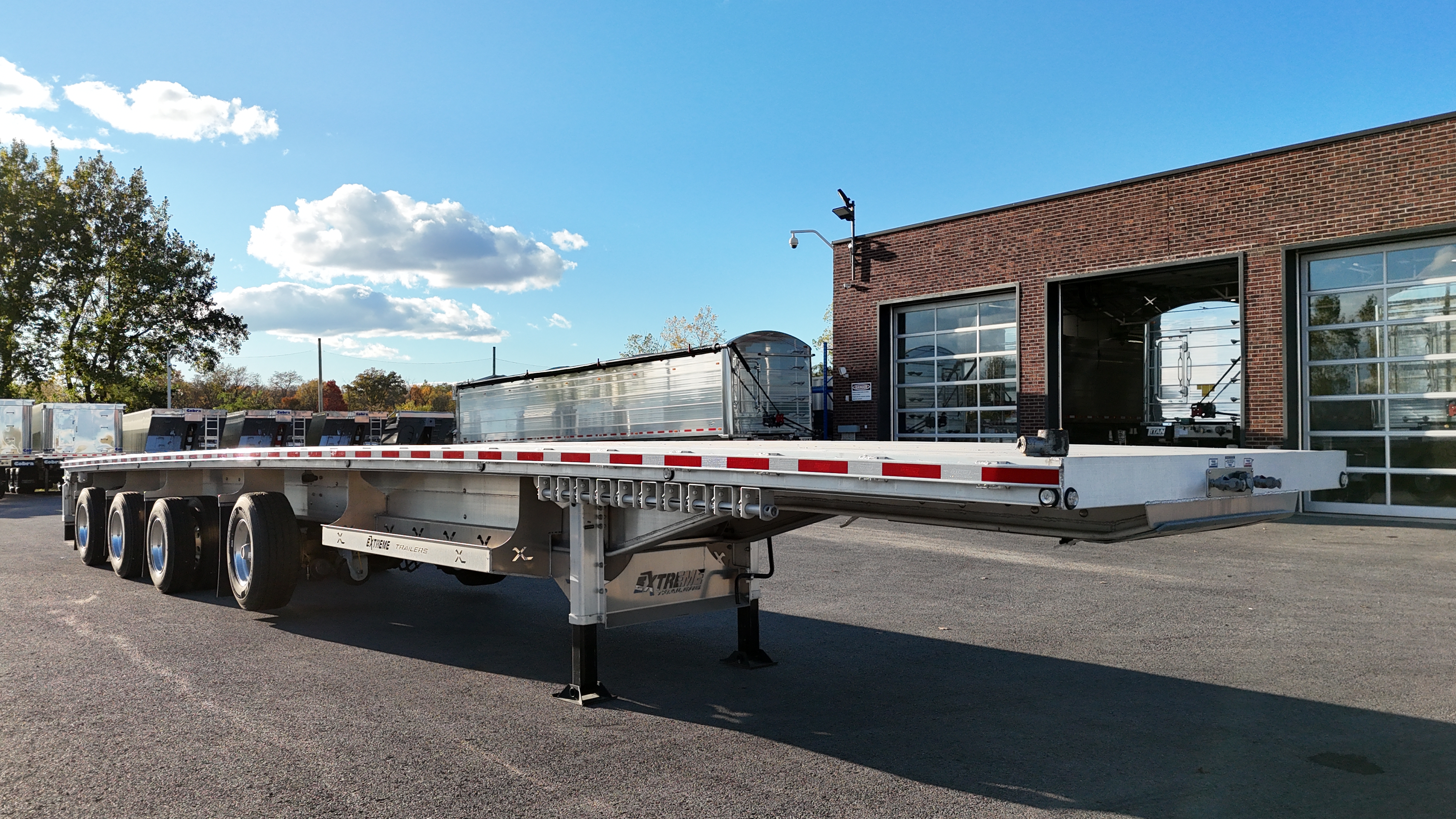

Description

• Brand : EXTREME TRAILERS

• Type : FLATBED

• Length : 53'

• Capacity : 75,000 lbs in 4 ft.

• Width : 102’

• Main Beams : 26” high beam

• Arch : 5’’

• Gooseneck : 13” height

• Floor : 12” aluminum boards (Extreme patent)

• Wood Planks : 2 rows in Apitong

• CRT : “Crush resistant technology” 53’ Full deck

• Crossmembers : 14" center to center (FULL coil pack)

• Spool Holder : Cross beams spaced 7” center to center, between the main beams (on 53')

• Side Rail : J-Track, with spools pockets and rub rail

• Pocket Spacing : At 24” center to center

• Winches Track : On 53’ / on both sides

• Sliding Winches : 14 total

• Suspension : INTRAAX AAT25 HXL5

• Axle Lift : Hendrickson

• Wheel Monitor : Included RM-60

• Control : Manual control in the box (all suspension valves / air lift valve) Electric control for other options

• Configuration : 72’’ – 72’’ – 109’’

• Air Gauge : In a box

• Hub and Drums : Hubs Dura Lite & Drums Centrifuse

• Braking System : 4S/2M | 16 ½’’ x 7’’ (EXTENDED SERVICE)

• Finish : Galvanized hanging box

• Tridem Rims : Duel / 22.5 in Aluminum / Alcoa Ultra Buffed

• Tridem Tires : Bridgestone R196 | 11R22.5

• Self-Steering Rims : Single / 22.5 in Aluminum / Alcoa Ultra Buffed

• Self-Steering Tires : Roadmaster RM332 | 385/65R22.5

• Side Lights (Markers) : 8 side lights

• Rear Lights : OOOO OOOOO OOOO 13 large lights with chrome surround

• Reflector Tape : Installed on the rub rail

• Upper Plate : 3/8 flat coupler - galvanized

• Fifth-Wheel Height : 48’’

• King Pin : 30’’

• 108’’ Dunnage Rack : Installed on the passenger side in front of the self-steering axle

• 1 Aluminum Box : 30’’ x 24’’ x 60’’ polished two-door installed on the driver’s side

• Price : Call us!

Information: (450) 688-3555 / Ask for François or Sylvain!

Website: https://remorqueslabelle.com/en/

Our inventory: https://remorqueslabelle.com/en/trailers/

Trailer's link: https://remorqueslabelle.com/en/trailers/product/extreme-flat-bed-53-4-axles/
