Description

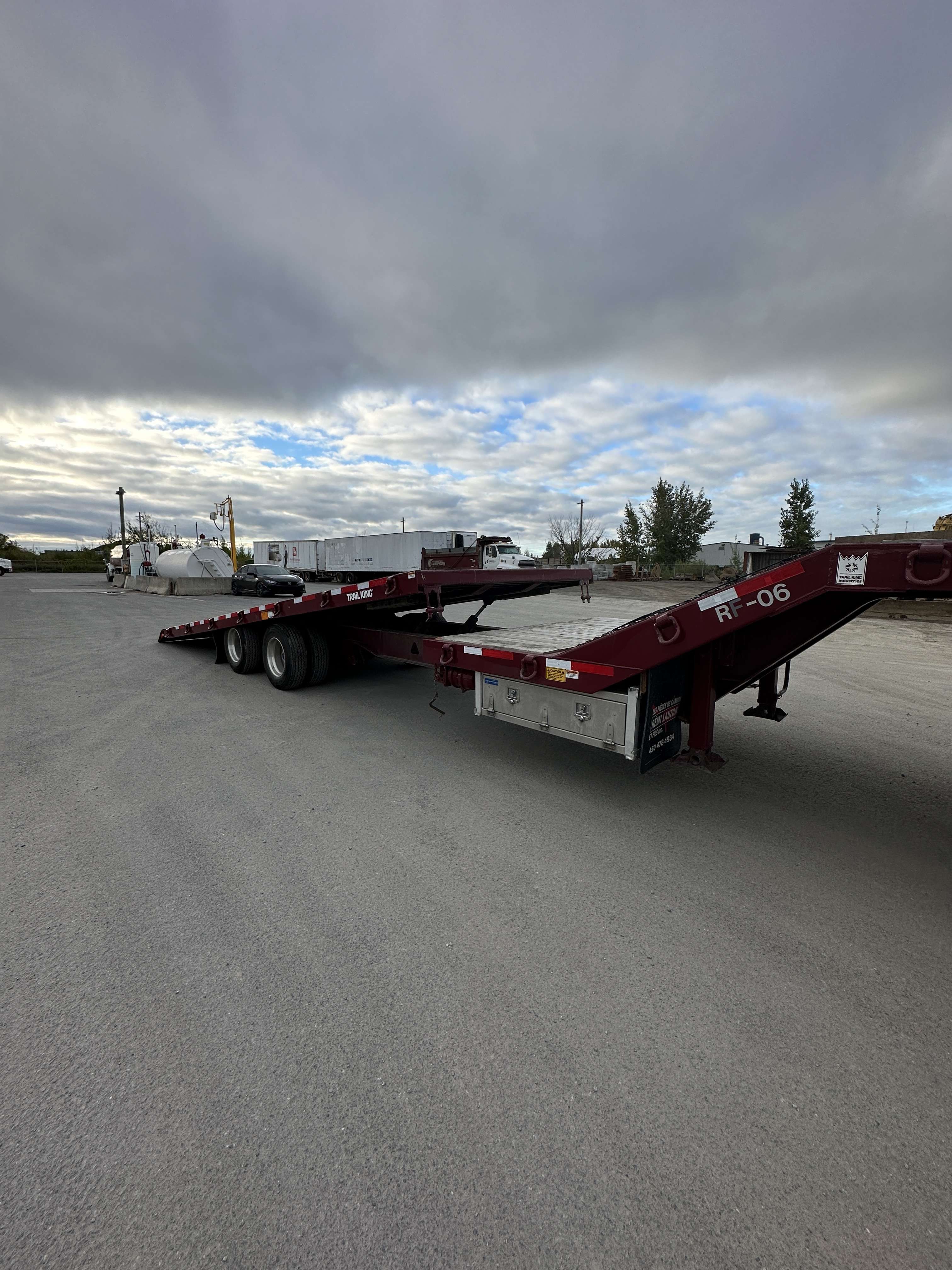

TRAIL KING TKT40LP 2021 SPECIAL:
Trailer with tipping platform.

Load capacity: 40,000 lbs.
Width: 102''.
Overall Length: 41'8"

Semi-type Gooseneck, equipped with a 102" x 9' loading platform covered with 1-1/2'' Oak.

5’ transition (20 degrees) to access the steel-covered top deck.

Fifth wheel height: 50”.

Coupling rod is 14'' with a clearance of 92''.

Two double speed parking legs.

Factory made 12" main beams.

7" type C exterior rail.

4" full-width I-Beam type beams every 11" on tilt bed.

28' main top, so 4' stationary and 24' tilting covered with 1-1/2" Oak.

Main Tray Height: 33" loaded.

12 degree loading angle.

Tilt Tray Lock: Dual Pneumatic Type.

2x hydraulic damping cylinders 3.5” x 16” x 1.5”.

Check valve for tilting platform.

12x lashing rings on each side of the trailer.

Hutch H9700 type suspension with springs.

2x 22,500 lb axles.

Axle spacings at 49".

Air brakes with ABS 4S2M (12 1/4 x 7 1/2).

8x Tires 235/75R17.5 - 18 ply.

4x Accuride (SP) aluminum wheels 6.75 x 17.5.

4x Accuride (XP) polished aluminum wheels 6.75 x 17.5.

Grote Electrical System.

Semi-trailer type 7-strand electrical outlet.

LED lights.

Briefcase.

Zinc Epoxy Primer.

Colour: Kenworth L0919 Maroon.

Certified trailer that meets Canadian standards.

Storage box on the trailer has been added and a chain rack has also been installed.
